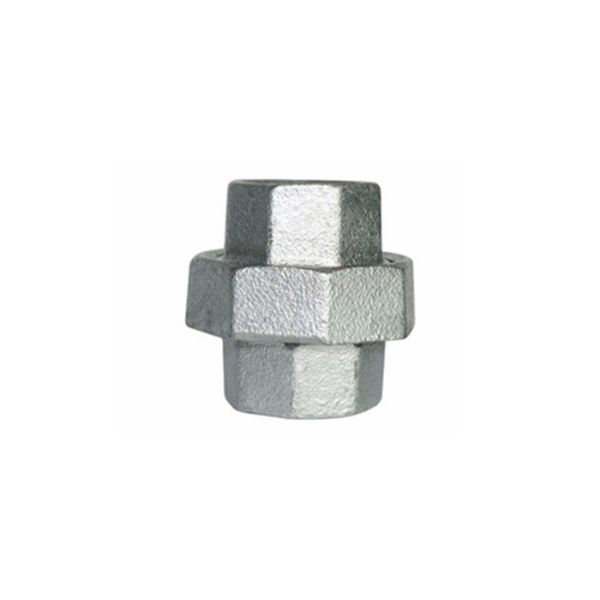

1"Size Conical Din Standard Conical Joint Galvanized Malleable Iron Unions

Product Categories
Leyon steel Co., Ltd
Contact Now

1"Size Conical Din Standard Conical Joint Galvanized Malleable Iron Unions

  • 1
  • 2
  • 3

Brand Name : kanaif

Model Number : 1"size conical union

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Color : Galvanized & black

Meterial : Malleable iron

Technics : Casting

Size : 1/8"-6“

Standard : ANSI,BS,DIN

Sueface teathment : Hot Galvanized

Head Code : Square

Type : 1"size conical union

Contact Now

Leyon offer 1"size conical union particular in steam, air, gas and oil pipes . our goods in many sizes, material and construction. These 1"size conical union from trustworthy usefulness 1"size conical unionto high capability and carefulness handle.

Look up table of 1"size conical union

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

1"Size Conical Din Standard Conical Joint Galvanized Malleable Iron Unions

  1. The spectrometer is an indispensable analytical instrument on analyzing of 1"size conical union.
  2. The full automatic produce-lines we introduced from DISA Denmark, DJ and SINTOKOGIO Japan have been a great improvement on 1"size conical union.
  3. We rely on higher heating value gas annealing furnace to import the physical characteristics of 1"size conical union.
  4. Every 1"size conical union will face strict airtight test.
  5. No strict size control of 1"size conical union, no accuracy thread.
  6. Pipe outlet dimension of 1"size conical union is from 1/8 "~4".
  7. Superior tenacity means prolonged working life.
  8. Smooth surface of 1"size conical union, no pore.
  9. Avg thickness of zinc coating is more superior comparing with ASME, EN, and BS, DIN and so on.

Visual communication​ of 1" flat seat union

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 32.0 36.5 41.0 43.5 49.5 52.5 57.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 61 70 82 89 98 145 　

1"Size Conical Din Standard Conical Joint Galvanized Malleable Iron Unions
